I'm a second-year Mechanical Engineering student at Georgia Tech. My interests lie in robotics, engineering, and rapid prototyping.

I'm working on a four-wheel differential swerve robot, and carrying on with the speed drone's GPS autonomy when I have time. Currently reading Protocols by Andrew Huberman. Reach out if you're working on something in this space.

Now

Updated October 2026

Previously at

Projects

SolidWorks render of the speed drone
Personal Project CFD 325 km/h GPS peak

Quadcopter Speed Drone

A 3D-printed quadcopter built for top speed from stock 5" parts, with GPS onboard for future autonomous flight. I designed the airframe in SolidWorks around the electronics and camera, then simulated airflow in OpenFOAM from −4° to 13° and 10 to 100 m/s to compare four fuselage shapes. I soldered all the electronics and tuned it in ArduPilot.

  • 325 km/h GPS peak on the third flight, unverified (172 km/h on the maiden, at 48% throttle)
  • 880 g printed in PLA
  • Peak L/D of 9.1 at 5°, and passively pitch-stable
Read the write-up →
FEA stress plot of the swerve module gears
Personal Project Robotics In Progress

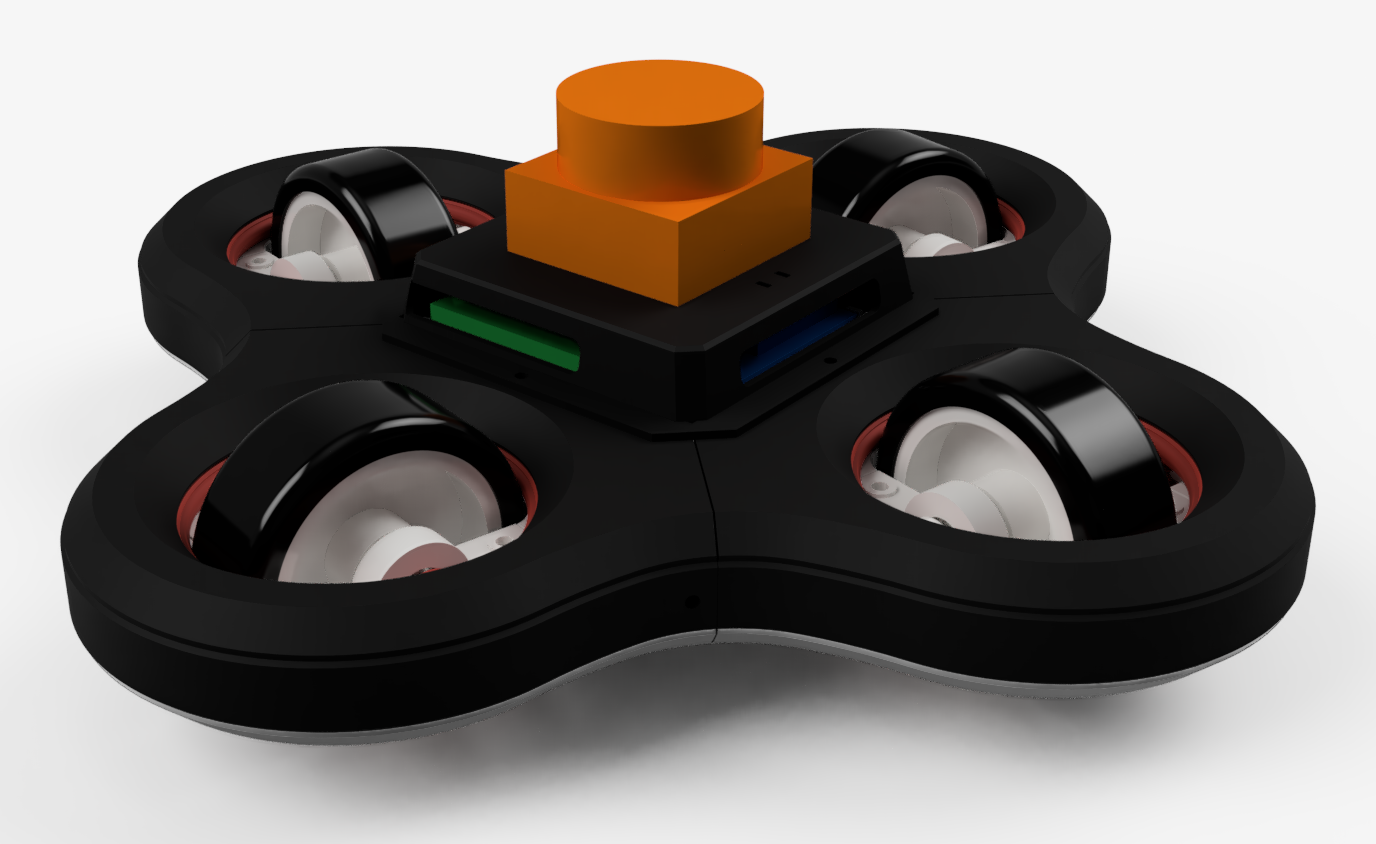

4-Wheel Differential Swerve Robot

A four-wheel robot where every wheel sits in a differential swerve module: two N20 motors both steer and drive each wheel, so the robot can move in any direction while rotating. I modelled it in Fusion 360, 3D-printed every structural part and ran FEA on the gears. A Raspberry Pi 5 handles LiDAR mapping and path planning, while an ESP32 on a custom PCB runs the motors.

  • 4 modules, 8 motors with unlimited steering, since no wires turn with the wheel
  • 12 MPa peak gear stress at motor stall, against about 50 MPa for PLA
  • 88 × 33 mm two-layer KiCad PCB replaces two hand-wired boards, with 0 design-rule errors
  • Next: module testing, closed-loop control and LiDAR mapping
Read the write-up →
